Why 20-Year Pro Contractors Recommend Vinyl 60×80 Sliding Patio Doors
Choose the Right 60 Inch Sliding Patio Door for Your Home
A 60 inch sliding patio door, usually sold as a 60 x 80-inch unit, is a practical choice for a standard 5-foot opening. For most Chicago-area homes, a vinyl model with double-pane Low-E glass, solid weatherstripping, and a quality lock offers the best mix of performance, low upkeep, and year-round comfort.
Before you buy, confirm these three details:
- Measure the existing opening – nominal door size and rough-opening size are not the same.
- Choose the operating direction – select left-hand, right-hand, or reversible handing based on where you need the moving panel.
- Prioritize energy features – insulated glass and Low-E coatings help limit winter drafts and summer solar heat.
Vinyl is popular because it does not rot, needs little maintenance, and works well in the freeze-thaw weather common in Des Plaines, Park Ridge, Morton Grove, and other Chicago suburbs. A well-chosen sliding door also saves floor space compared with a French patio door because its panel moves along a track rather than swinging into the room.
I’m Voytek Glab, owner of Perfect Windows & Siding, and I have spent more than 20 years helping Chicagoland homeowners select and install the right 60 inch sliding patio door for comfort, security, and long-term value. The next sections break down the materials, glass packages, configurations, and installation details that matter most.
Learn more about 60 inch sliding patio door:
Why Contractors Choose Vinyl for a 60 Inch Sliding Patio Door
When we evaluate patio entrance systems for long-term performance across Chicagoland, vinyl continuously proves itself as the premier framing choice. A standard 5-foot opening demands a structural frame that resists warping while maintaining an airtight thermal boundary against harsh Midwestern winters and humid summers. Modern multi-chambered vinyl profiles are engineered specifically to trap air within internal pockets, forming an effective thermal barrier that prevents heat conduction through the frame.
Unlike organic materials, precision-extruded vinyl will never absorb moisture, pit, peel, or rot. This eliminates seasonal maintenance routines like sanding, staining, and painting. Upgrading with a high-performance double pane sliding glass door replacement ensures the moving sash stays rigid, operates smoothly along its track, and keeps interior rooms comfortable throughout severe temperature fluctuations.
| Material Feature | Premium Vinyl | Structural Composite | Traditional Wood |
|---|---|---|---|
| Moisture Resistance | 100% Waterproof (Zero Rot) | Excellent Water Resistance | Prone to Rot & Swelling |
| Thermal Insulation | Multi-Chamber Air Trapping | Solid Core Thermal Barrier | Natural Insulator |
| Maintenance Level | Minimal (Soap & Water) | Low (Occasional Cleaning) | High (Regular Sealing/Painting) |
| Structural Stability | Fusion-Welded Corners | Rigid Composite Core | Susceptible to Seasonal Warping |
| Surface Durability | UV-Resistant Color Extrusion | Scratch-Resistant Finish | Painted or Stained Finish |
Material Comparisons: Vinyl vs Composite
Choosing between vinyl and composite comes down to understanding structural rigidity and long-term care. Composite frames combine wood fibers and thermoplastic polymers to create a rigid, moisture-resistant core that eliminates wood rot. This material provides exceptional stability and holds up well against surface impacts.
However, modern multi-chambered vinyl remains the industry standard for high-performance residential entryways. Extruded vinyl sashes feature fusion-welded corners that create an impermeable seal against exterior drafts and heavy rains. When evaluating 5ft sliding glass doors for homes in Glenview, Niles, or Skokie, premium vinyl delivers top-tier structural integrity, long-lasting weather protection, and minimal maintenance over decades of everyday use.

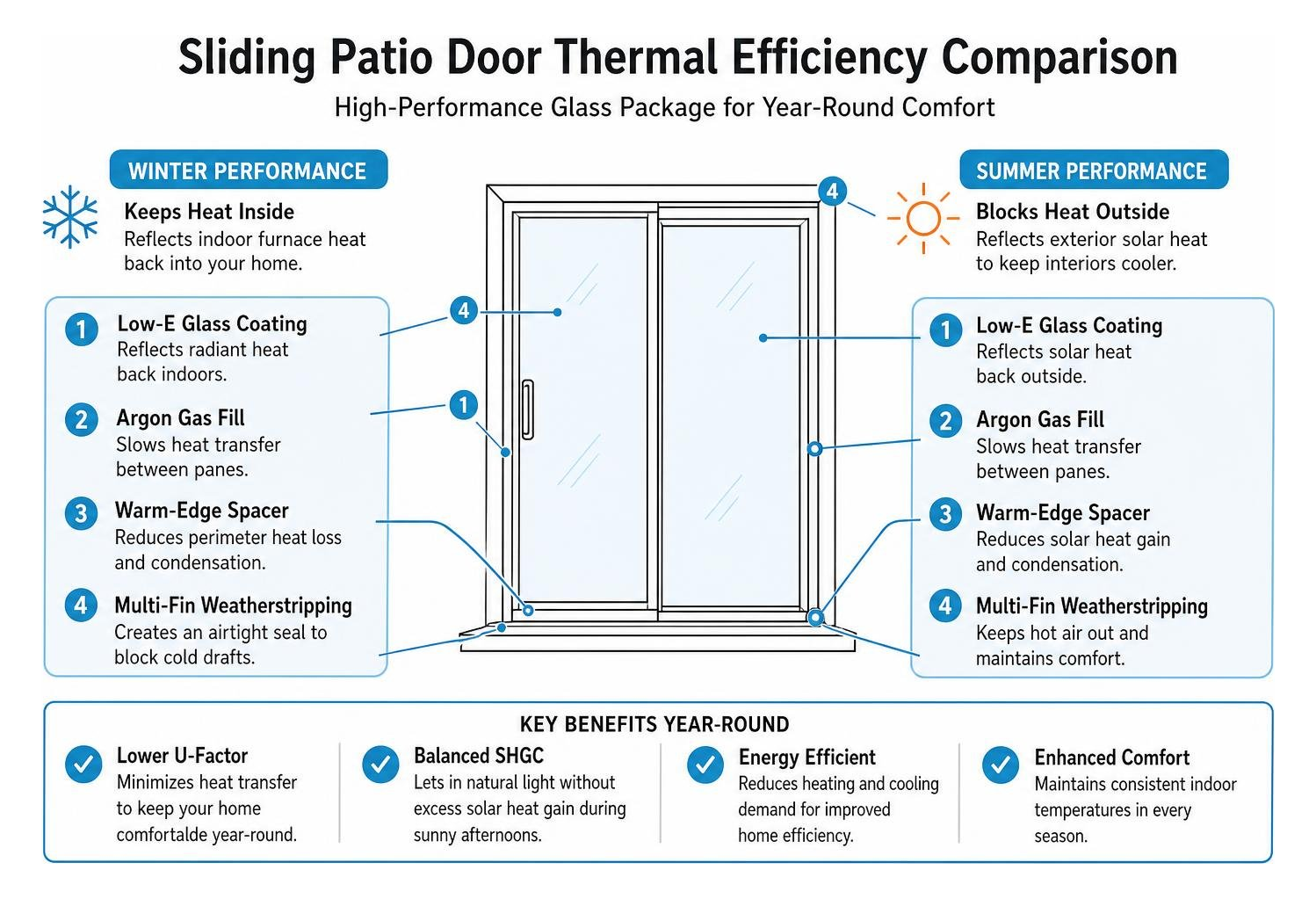

Critical Performance Features: Glass, Blinds, and Thermal Efficiency
The glass package accounts for roughly 80% of a patio door’s surface area, making it the most important factor in whole-home energy performance. Modern sliding units feature dual-pane tempered glass units separated by warm-edge spacer systems. These spacers reduce perimeter condensation and thermal conduction.
A microscopic Low-E (low-emissivity) coating is applied to the internal glass surfaces to reflect radiant heat back to its source. During January freezes in Park Ridge, Low-E glass reflects indoor furnace heat back into your living spaces; in July, it reflects exterior solar radiation outward to reduce air conditioning strain. Filling the sealed space between glass panes with non-toxic, high-density argon gas further slows convective thermal transfer.
For homeowners wanting effortless privacy and light control, internal mini blinds sealed between the insulated glass panels eliminate dangling cords, pet entanglement risks, and the chore of dusting delicate slats. When selecting new sliding glass doors, choosing advanced thermal coatings ensures your living area stays bright and draft-free in all seasons.
Energy Star Ratings for Midwest Climates
Chicagoland homes fall within the Northern climate zone, requiring dedicated thermal engineering to manage sharp winter freezes and humid summer afternoons. Under the federal Energy Star program, patio doors certified for Northern regions must meet stringent efficiency criteria. When reviewing door ratings, pay close attention to the U-factor and Solar Heat Gain Coefficient (SHGC). The U-factor measures overall heat transfer rate—the lower the number, the better the door keeps indoor warmth inside. An SHGC rating balanced for our region lets in pleasant natural daylight without baking your interior during sunny afternoons.
Our comprehensive patio door replacement guide for 2026 emphasizes that top-performing patio doors combine low U-factors with multi-fin perimeter weatherstripping. This dual-fin seal compresses snugly along the top header, side jambs, and bottom sill when the door latches shut, blocking lakefront wind gusts and stopping outdoor drafts.
Configurations, Handing, and Hardware Options

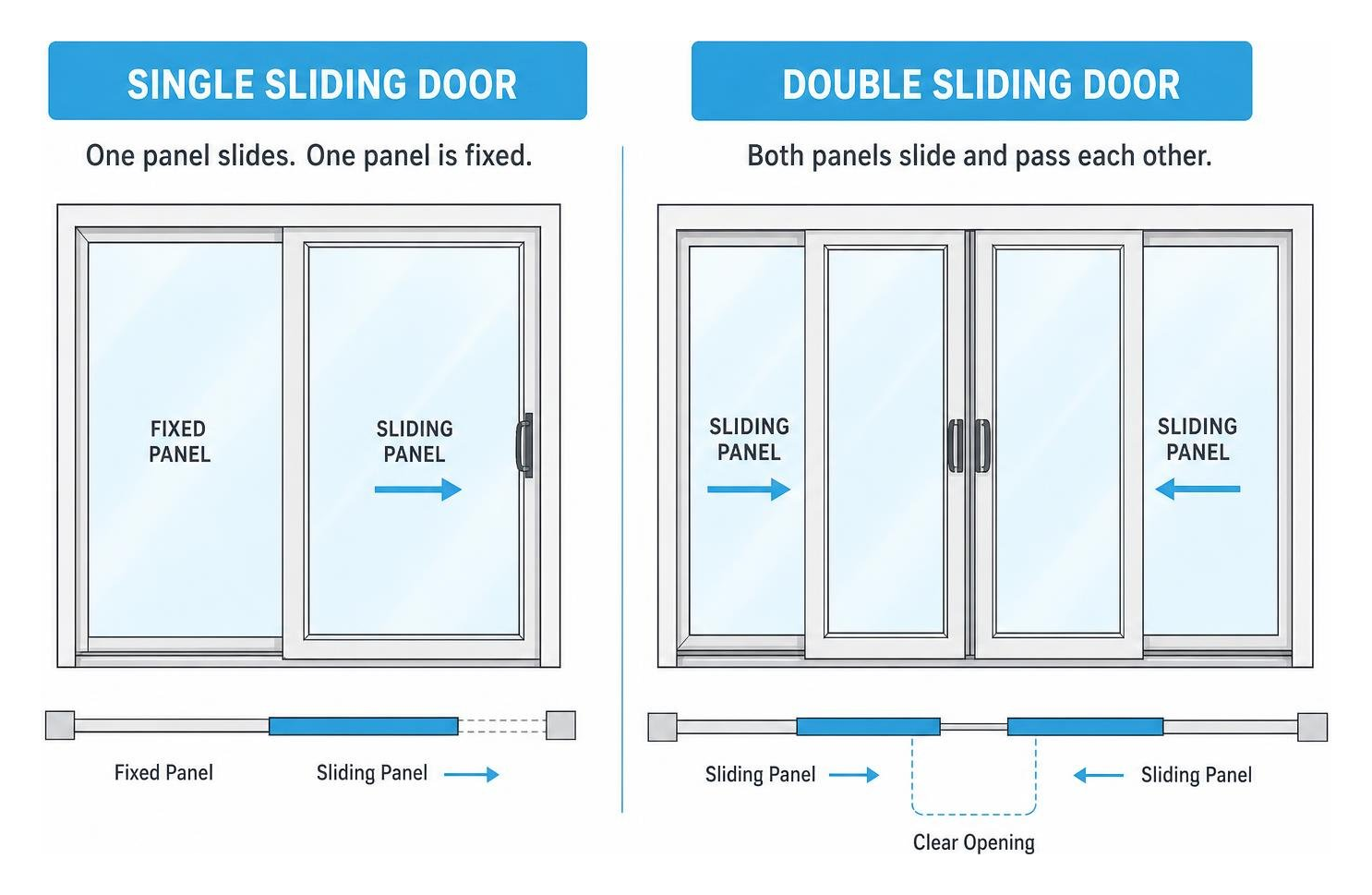

A 60 x 80-inch sliding unit typically features one fixed panel and one operable active panel, though double sliding options exist where both panels bypass each other along dual tracks. Smooth operation relies on the roller system. Premium models use adjustable tandem steel or heavy-duty nylon ball-bearing rollers that distribute panel weight evenly across a raised stainless-steel track, preventing sticking, jumping, or derailing.
Home security depends on the locking mechanism. Standard surface latches provide minimal resistance against forced entry, whereas multi-point mortise locks anchor the operating panel directly into the heavy-gauge structural jamb at several vertical points. Pairing this hardware with heavy-duty extruded aluminum screen doors ensures smooth ventilation and reliable insect protection during spring and fall. For detailed technical guidance on framing preparation, review our article on fitting sliding patio doors like a pro.
Left-Hand vs Right-Hand vs Reversible Door Handing
Door handing determines which side of the unit moves and which side remains stationary. By industry standard, handing is viewed from the outside looking in:
- Left-Hand (XO): The left panel slides open while the right panel remains fixed.
- Right-Hand (OX): The right panel slides open while the left panel remains fixed.
- Reversible / Universal Handing: The unit features a symmetrical frame and unhanded interlocks, allowing the installer to place the operating sash on either the left or right during setup.
Choosing the proper handing prevents traffic bottlenecks and keeps open door panels from blocking light switches, dining furniture, or exterior deck railings.
Sliding Patio Doors vs French Patio Doors
While hinged French doors offer classic charm, they require substantial clear floor area to swing open—either inward into your living room or outward onto the deck. In a compact 60-inch opening, a two-panel French door splits the opening into two narrow 30-inch leaves, which can restrict moving large furniture in and out.
Sliding units glide parallel along a single track, saving valuable interior and exterior floor space. They also feature narrower frame profiles that maximize clear glass area, flooding rooms with natural light. Review our analysis of the top patio and sliding doors for Chicago to see how modern sliding doors deliver superior weather seals and wind resistance compared to traditional center-meeting French doors.
Installation Considerations and Long-Term Value
Even the highest-rated patio door will fail prematurely if installed out of square, plumb, or level. Installing a 60-inch unit requires careful opening preparation to keep water out and ensure smooth daily operation.
Our licensed installation crews always establish a rigid, level base using composite shims beneath the structural sill. We apply commercial-grade sill pan flashing membranes to route any stray condensation safely outward. After squaring the vinyl master frame with precision levels, the perimeter cavity is sealed with low-pressure, closed-cell expanding polyurethane foam. This insulates without bowing the jambs, preventing air infiltration and protecting your investment for the life of your home. To understand the labor and structural requirements for your project, review the variables in what it actually takes to install a sliding glass door.
Standard Dimensions of a 60 Inch Sliding Patio Door
A “60×80” door uses nominal sizing. The actual manufacturing dimensions for the assembled unit are typically 59-1/2 inches wide by 79-1/2 inches high. This intentional 1/2-inch reduction provides the necessary clearance to shim, plumb, and insulate the unit within the rough framing opening.
Before ordering, measure the rough opening width and height in three separate locations (top, middle, bottom for width; left, center, right for height). Use the smallest measurement to ensure proper fit. If you are retrofitting an older home in Arlington Heights or Elmhurst with non-standard framing, explore our guide to custom patio door replacement options to match unique structural openings without sacrificing thermal performance.
Long-Term Value and Customization Features
When investing in an exterior renovation, selecting the right door package involves balancing long-term performance and daily convenience:
- Framing Quality: Multi-chamber virgin vinyl with fusion-welded corners provides the longest operational life without cracking or peeling.
- Glazing Packages: High-efficiency Low-E glass with argon gas fills maximizes indoor thermal comfort and protects flooring from UV fading.
- Integrated Blinds: Factory-sealed internal blinds eliminate routine maintenance and keep dust and pet dander off window treatments.
- Hardware and Finishes: Upgraded brushed nickel, oil-rubbed bronze, or matte black multi-point locking handles improve both security and interior aesthetics.
- Professional Craftsmanship: Certified installation prevents drafty perimeters, tracking resistance, and moisture damage.
Frequently Asked Questions About 5-Foot Patio Doors
What is the actual rough opening size needed for a 60×80 sliding door?
The ideal rough opening for a nominal 60 x 80-inch sliding patio door is 60 inches wide by 80-1/2 inches high. This provides a 1/4-inch to 1/2-inch gap around the perimeter, giving installers enough room to square the frame, insert leveling shims under the sill, and apply non-expanding insulating foam around the master jambs.
What is included with a standard sliding patio door unit?
A complete factory sliding door system generally includes the vinyl or composite master frame, one fixed insulated glass panel, one sliding sash panel with factory-installed tandem rollers, heavy-duty perimeter weatherstripping, an interior/exterior handle set with a keyed or mortise lock, and a color-matched sliding insect screen.
How do built-in blinds work inside sliding patio door glass?
Internal blinds are hermetically sealed inside the insulated double-pane glass unit during factory assembly. They operate using strong magnetic sliders mounted on the interior glass surface. Moving the side controller raises, lowers, or tilts the aluminum blinds smoothly without piercing the glass seal or breaking the argon gas barrier.
Conclusion
A 60 x 80-inch vinyl sliding patio door remains the leading choice for Chicago homeowners seeking clear outdoor views, simple daily operation, and solid weather protection. Multi-chambered vinyl frames paired with Low-E argon-filled glass packages eliminate drafts and stand up to seasonal temperature extremes across Cook, DuPage, and Lake Counties.
