Why a 5ft Sliding Glass Door Is a Smart Choice for Chicago Homes
A 5ft sliding glass door is one of the most practical upgrades you can make to a Chicago home — bringing in natural light, connecting your living space to the outdoors, and fitting neatly into openings where a larger door simply won’t work.
Quick Answer: What to Know About a 5ft Sliding Glass Door
| Feature | Details |
|---|---|
| Standard size | 60 in. W x 80 in. H (actual: ~59.5 in. x 79.5 in.) |
| Clear opening width | ~30 inches per sliding panel |
| Common materials | Vinyl, aluminum, fiberglass, wood |
| Key glass features | Low-E coating, argon gas fill, tempered safety glass |
| Energy efficiency | Look for ENERGY STAR certification and low U-Factor |
| Typical security features | Multi-point locks, tempered glass, foot locks |
| Best for | Smaller openings, kitchens, breakfast rooms, bedrooms with deck access |
These doors slide on a track instead of swinging open, which makes them ideal for rooms where floor space is tight. And at 5 feet wide, they fit standard rough openings without requiring major structural changes.
That said, not all 5ft sliders are built the same. Material quality, glass performance, hardware, and installation all determine how well the door holds up — especially through Chicago’s harsh winters and humid summers.
I’m Voytek Glab, owner of Perfect Windows & Siding, and over my 20+ years installing and replacing exterior doors across the Chicagoland area, I’ve helped hundreds of homeowners select and install the right 5ft sliding glass door for their specific home and climate. In this guide, I’ll walk you through everything you need to make a confident, well-informed decision.
Understanding 5ft Sliding Glass Door Dimensions
When we talk about a 5ft sliding glass door, we are usually referring to a “6080” door (60 inches wide by 80 inches high). However, in home improvement, “5 feet” is often a nominal term. If you take a tape measure to the actual frame, you’ll likely find it measures closer to 59.5 inches by 79.5 inches. This small gap is intentional; it allows the door to fit into the rough opening of your wall with enough room for leveling, shimming, and insulation.
Rough Opening Requirements
For a standard 60-inch door, the rough opening in your wall typically needs to be about 60 inches wide and 80.5 to 81 inches high. Getting these measurements right is the difference between a door that glides like a dream and one that sticks every time the humidity changes in Des Plaines or Naperville.
Clear Opening Width: Is 5ft Enough?
One of the most common questions we hear is whether a 5ft door feels too “tight.” A 5ft slider consists of two panels: one fixed and one that slides. Because the panels overlap slightly, a 5ft sliding glass door provides a clear walk-through width of approximately 30 inches.
| Door Size | Total Width | Clear Opening Width (Approx.) |
|---|---|---|
| 5ft Slider | 60″ | 30″ |
| 6ft Slider | 72″ | 36″ |
| 3ft French Door | 36″ | 32″ |
While 30 inches is plenty for a standard person to walk through comfortably, it can feel narrow if you are frequently carrying large trays of food to a deck in Arlington Heights or moving furniture. If you have the wall space, upgrading to a 6ft slider offers a more generous 36-inch opening. However, for kitchens and breakfast nooks where every inch of wall space counts, the 5ft model is a champion of efficiency. For more technical details on how these fit into your home, check out our guide on exterior door installation.
Frame and Jamb Depth
Standard jamb depths for these doors are usually 4 9/16 inches or 5 1/4 inches, designed to match standard 2×4 or 2×6 wall construction. If you live in an older Chicago bungalow with thicker masonry walls, you might require jamb extensions to ensure a flush fit.
Material Options for Longevity and Performance
Choosing the right material for your 5ft sliding glass door frame is about balancing aesthetics with the reality of Illinois weather. We’ve seen how Lake Michigan winds can punish a poorly made door.
- Vinyl: This is the most popular choice for a reason. Modern vinyl is incredibly durable and won’t rot, warp, or peel. Look for “Solid Frame Technology” or multi-chambered profiles. These chambers act as air pockets that trap heat, significantly improving the door’s thermal performance.
- Aluminum: Often used in contemporary designs, aluminum is exceptionally strong and wind-resistant. However, because metal conducts heat, ensure any aluminum door you choose has “thermal break” technology to prevent the Chicago cold from radiating into your living room.
- Fiberglass: Fiberglass is the “set it and forget it” material. It mimics the look of wood but handles extreme temperature swings without expanding or contracting. It’s incredibly stiff, which is great for maintaining a perfect seal over decades.
- Wood: For classic Chicago charm, nothing beats real wood. Many high-end 5ft sliders feature a wood interior (like pine or oak) with a vinyl or aluminum “clad” exterior to protect it from the elements. If you love the traditional look, explore our custom wood exterior doors for inspiration.
For those who want to dive deep into the engineering, this Sliding Glass Door Technical Guide offers a look at how professional-grade doors are constructed.

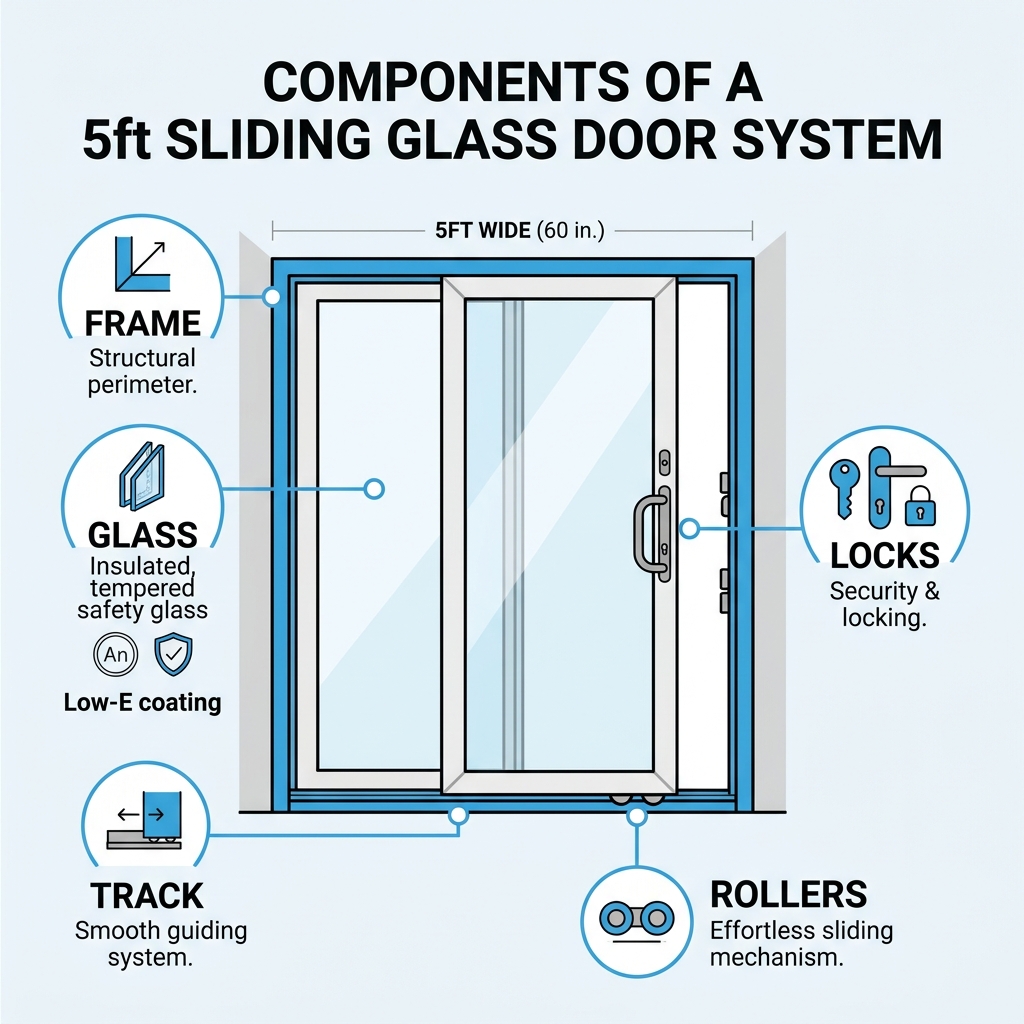

Key Features of a High-Quality 5ft Sliding Glass Door
Since a sliding door is essentially a giant window you can walk through, the glass is the most important component. In the Chicagoland area, you need glass that keeps the heat in during February and the AC in during July.
Energy Efficiency and Glass Performance
We recommend always looking for ENERGY STAR ratings and certifications when selecting a door. Here are the specs that actually matter:
- Low-E Glass: A microscopic metallic coating that reflects infrared light. It keeps your home warmer in winter and cooler in summer.
- Argon Gas Fill: This odorless, non-toxic gas is injected between the glass panes. It’s denser than air and acts as a superior insulator.
- U-Factor: This measures how well the door prevents heat from escaping. The lower the number, the better.
- SHGC (Solar Heat Gain Coefficient): This measures how much solar radiation comes through the glass. In Chicago, we want a balanced SHGC to get some “free” heat from the sun in winter without overheating in summer.
If your current door is drafty or difficult to lock, it might be time for a door-replacement-chicago to improve your home’s envelope.
Security and Hardware for a 5ft Sliding Glass Door
A sliding door shouldn’t be the weak point in your home security. Modern 5ft sliding glass doors have come a long way from the simple “hook” latches of the 1970s.
- Multi-point Locking Systems: These engage the door at several points along the frame, making it nearly impossible to jemmy open.
- Dual-point Locks: These specifically prevent the sliding panel from being lifted off its track from the outside.
- Foot Locks: An optional secondary bolt at the bottom of the door that provides extra peace of mind.
- Tempered Safety Glass: Standard on all modern patio doors, this glass is heat-treated to be much stronger than regular glass. If it does break, it crumbles into small, dull cubes rather than sharp shards.
If you’re upgrading your home’s security, we often recommend looking at door-and-window-replacement-near-me options that offer integrated security features.
Operation and Maintenance of a 5ft Sliding Glass Door
A door is only as good as its rollers. We prefer doors with tandem rollers—usually dual ball-bearing wheels—that distribute the weight of the glass more evenly. This ensures that even a heavy, double-paned 5ft door can be opened with a single finger.
To keep your door sliding smoothly for the next 20 years:
- Clean the tracks: Vacuum out the dirt and pet hair that inevitably settles in the bottom track.
- Lubricate: Use a silicone-based spray on the tracks and rollers once a year. Avoid grease or oil, which can actually attract more gunk.
- Check the weatherstripping: If you see daylight or feel a breeze, it’s time to replace the seals.
For more maintenance tips or if you’re considering a full overhaul, our guide on entry-door-installation-chicago covers the essentials of long-term door care.
Professional Installation and Handing Considerations
Installing a 5ft sliding glass door isn’t just about “popping it in.” Because our Chicago climate includes extreme temperature swings, the door needs room to expand and contract without losing its seal.
Understanding Door Handing
Before you order, you need to decide which way the door slides.
- Left-Hand (LH): From the outside looking in, the left panel slides to the right.
- Right-Hand (RH): From the outside looking in, the right panel slides to the left.
- Universal/Reversible: Some modern vinyl doors are designed so the handing can be determined during installation.
Why Professional Installation Matters in Chicago
In places like Park Ridge or Hinsdale, where wind loads can be significant, the structural integrity of the installation is paramount. A door that isn’t perfectly plumb and square will eventually leak air or water. Our exterior-door-installation-chicago process involves ensuring a triple-weatherproof seal and testing for water tightness before we consider the job done.
Common Questions About 5ft Sliders
Is a 5ft sliding door too narrow for high-traffic areas? As mentioned, the 30-inch opening is standard. If you are a “host-of-the-year” type who frequently moves large coolers and furniture to the patio, you might find it a bit snug. However, for 90% of daily use, it’s perfectly functional.
Can I add blinds-between-the-glass to a 5ft slider? Yes! Many manufacturers offer “integrated blinds.” These are sealed between the panes of glass, meaning they never get dusty and can’t be bent by curious pets or kids. It’s a fantastic option for privacy in closely packed Chicago suburbs.
How do 5ft sliders perform in Chicago winters? If you choose a door with a high-performance vinyl frame and Low-E glass, they perform exceptionally well. The key is the “interlocking rail”—the point where the two panels meet. A high-quality door will have a tight, weather-stripped interlock that prevents the “whistling” wind from entering your home.
Conclusion
A 5ft sliding glass door is a versatile, space-saving solution that can transform the feel of your home. Whether you’re looking to brighten up a kitchen in Morton Grove or add a private entrance to a master bedroom in Wilmette, the right slider provides beauty, security, and energy efficiency.
