Why You Should Install Weather Stripping on Your Sliding Glass Door Before Winter Hits
If you’ve been putting off the decision to install weather stripping on your sliding glass door, here’s what you need to know right now:
How to install weather stripping on a sliding glass door (quick steps):
- Test for drafts using the dollar bill test — slide a bill through the closed door at the interlock; if it pulls out easily, the seal is worn.
- Measure your door’s kerf width and pile height before buying any replacement material.
- Clean the channel with isopropyl alcohol.
- Remove the old seal with a putty knife or needle-nose pliers.
- Press or slide the new fin seal into the kerf channel, cutting it 1/8 inch longer than the channel.
- For a no-removal option, apply peel-and-stick adhesive weather stripping directly to the door edge after cleaning with rubbing alcohol.
That cold stripe across your living room floor in January isn’t your furnace failing. It’s almost certainly your sliding glass door leaking air.
According to the U.S. Department of Energy, air leaks account for 5 to 10% of total home heating and cooling costs. On a typical Chicago-area energy bill, that’s real money leaving your home every single month — through gaps you can’t even see.
And here’s the part most homeowners miss: up to 80% of air infiltration on sliding doors starts at the interlock — the vertical line where the sliding panel meets the fixed panel — not at the edges or bottom where people usually check first.
Weather stripping on sliding glass doors typically lasts 5 to 10 years before UV exposure, friction, and Chicago’s freeze-thaw cycles flatten or crack the seals beyond repair. If your door is more than a decade old and you haven’t replaced the seals, there’s a good chance it’s leaking air right now.
The good news: this is one of the most straightforward home maintenance tasks you can do yourself in an afternoon.
I’m Voytek Glab, owner of Perfect Windows & Siding, and over my 20+ years working on exterior doors and windows across the Chicagoland area, I’ve seen how much comfort and energy efficiency homeowners gain simply by learning how to install weather stripping on a sliding glass door correctly. This guide walks you through every step so you can get it done right the first time.
Install weather stripping sliding glass door word guide:
- Andersen Sliding Door Weather Stripping Replacement
- Glass Door Roller Replacement
- Patio Door Replacement
Signs Your Patio Door Needs New Weather Stripping and How to Choose Materials
Before running out to pick up materials, you need to verify whether your current weather stripping has failed and determine the exact style your door frame requires. Sliding patio doors rely on specialized seal profiles to block drafts while allowing heavy glass panels to glide smoothly along their tracks. To learn more about standard residential sealing basics, check out our guide on weather stripping 101 keep the cold out and the cozy in.
Identifying Worn Door Seals
In Chicago suburbs like Des Plaines, Park Ridge, and Morton Grove, harsh winters and humid summers put patio seals through extreme temperature swings. Over time, friction and UV radiation break down rubber and felt components.
Here are the primary indicators that your door seals are ready for replacement:
- Visible Gaps and Daylight: Close your sliding door fully and look along the side jambs and vertical interlock. If you see daylight peeking through, cold air is entering freely.
- Flattened or Missing Pile: High-traffic doors flatten the tiny brush fibers (pile) over time, eliminating the compression barrier needed to trap air.
- Cracked or Brittle Rubber: Exposure to sunlight hardens rubber bulb seals, causing them to split, crack, or flake off in chunks.
- Pest Intrusion: A sudden trail of ants or small insects appearing along the inner threshold often indicates a failed interlock or bottom seal.
- Draft Inspection Tests: Perform the dollar bill test by closing the door onto a dollar bill at various points around the frame. If you can pull the bill out effortlessly without friction, the seal isn’t compressing properly. At night, have a helper shine a bright flashlight around the exterior perimeter while you observe from the inside; any visible light beams signal open air pathways.
Selecting the Right Weather Stripping Type
Sliding glass doors do not use basic foam tape inside their tracks because sliding friction would tear it away instantly. Instead, manufacturers design these doors with channel grooves called kerfs that hold flexible strips in place.
- Fin Seal (Brush Pile with Mylar Fin): This is the gold standard for sliding patio doors. It consists of dense synthetic brush fibers with a solid plastic Mylar fin running down the center. The brush minimizes sliding friction while the central fin acts as a airtight barrier against heavy wind.
- Rubber Bulb Seals: Commonly found along the vertical side jamb where the latching edge meets the frame, rubber bulbs compress to form a tight seal when the door latches closed.
- Vinyl T-Fin Seals: Rigid vinyl backing strips with flexible legs slide directly into kerf channels on aluminum or vinyl frames, offering exceptional weather resistance.
- V-Seal Strips: Flexible plastic strips shaped like a “V” that press against sliding panels to create a continuous spring-loaded air seal.
Crucial Tip: Never select weather stripping based solely on your door panel size (such as “6-foot door”). You must measure two critical dimensions using a millimeter rule or fractional gauge:
- Kerf Backing Width: Standard T-slot backing channels are typically 3/16 inch (0.187 in) or 1/4 inch (0.270 in) wide.
- Pile Height: Measure the distance from the base plate to the tip of the brush fibers. If you select a pile height that is too tall, your door won’t slide; if it is too short, air will blow right past it.
How to Install Weather Stripping Sliding Glass Door Step-by-Step
When you’re ready to install weather stripping sliding glass door seals properly, proper surface preparation and systematic installation make all the difference between a smooth-sliding, draft-free patio door and a frustrating weekend project.
Tools and Prep to Install Weather Stripping Sliding Glass Door
Gather these essential tools before starting your project:
- Tape measure
- Utility knife or heavy-duty scissors
- Small flathead screwdriver, putty knife, or pick set
- Needle-nose pliers
- 91% isopropyl rubbing alcohol and microfiber rags
- 100% exterior silicone sealant
- Helper (sliding glass door panels are heavy and require two people to lift safely)
Before removing seals or lifting heavy panels, review our comprehensive tips on fitting sliding patio doors like a pro.

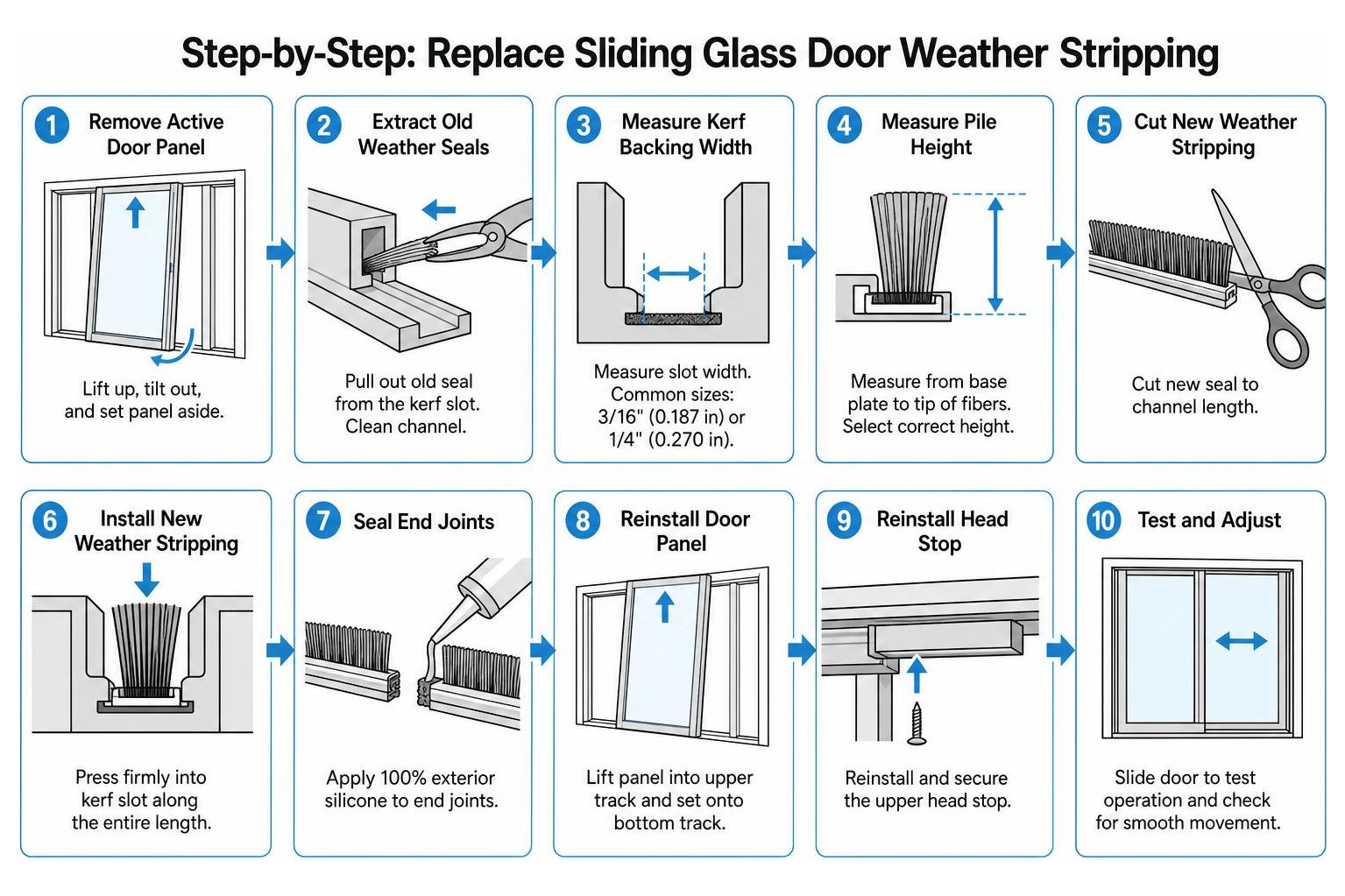

Removing Old Seals and Applying New Weather Stripping
To achieve factory-grade results, removing the active sliding panel provides full access to the track channels and interlock strips.
Step 1: Remove the Active Door Panel
Locate the roller adjustment screws at the bottom corners of the sliding door panel. Use a screwdriver to turn the screws counterclockwise, retracting the wheels fully into the frame so the door rests flat on the track. Next, enlist a helper to unscrew and remove the upper head stop (the wooden or metal safety strip inside the top track). Lift the sliding panel straight up into the deep upper channel, swing the bottom of the door outward over the sill, and set it down carefully on sawhorses or a padded blanket.
Step 2: Extract Degraded Weather Seals
Use a pick, putty knife, or needle-nose pliers to grab the end of the old pile or bulb seal inside the kerf slot. Pull the worn material out along the entire channel length. If the seal has disintegrated into hard plastic fragments, scrape the channel clean using a narrow screwdriver tip.
Step 3: Thoroughly Clean the Kerf Channels
Dust, sand, and old adhesive residue prevent new seals from seating properly. Vacuum out all debris from the tracks, then scrub the inside of the kerf grooves with a rag soaked in 91% isopropyl alcohol. Allow the channel to dry completely.
Step 4: Cut and Install New Fin Seals
Measure the length of each channel. Cut your new fin seal or brush pile 1/8 inch longer than the channel measurement to account for potential material shrinkage over time. Slide the rigid T-backing plate into the kerf slot from one end, pushing it smoothly down the frame. If your door tracks do not allow sliding from the end, gently press the backing into the channel using your thumb or a plastic putty knife without stretching the pile. For complete DIY insights, check out this guide on Sliding Glass Door Weather Stripping: Easy DIY Fix Guide.
Step 5: Secure Corners and Reinstall
Apply a tiny dot of 100% exterior silicone sealant behind the weather stripping at the upper and lower corners to lock the ends in place. Carefully lift the active door panel back into the top channel with your helper, set the bottom rollers onto the track rim, reattach the upper head stop, and adjust the lower roller screws clockwise until the door sits square and glides smoothly.
Alternative No-Removal Options and Sealing Critical Gaps
If removing a heavy glass panel isn’t practical, or if you live in a rental unit where structural disassembly isn’t allowed, you can still eliminate drafts effectively using surface-applied sealing methods.
How to Install Weather Stripping Sliding Glass Door Without Removing Panel
You can achieve immediate comfort improvements without lifting the door out of its frame by applying peel-and-stick flexible weather seals.
- Clean the Target Surfaces: Wipe down the edge of the sliding door frame and stationary jamb using rubbing alcohol. Adhesive tape will not stick to dusty, oily surfaces.
- Select Flexible Silicone Flange Strips: Use self-adhesive silicone or V-seal strips featuring a wide flexible blade designed to span gap widths up to 1-1/2 inches.
- Measure and Trim: Measure the vertical height of your sliding door frame and trim the strip to length with household scissors.
- Apply Gradual Pressure: Peel back 2 to 3 inches of adhesive backing at a time, working from the top of the frame down to the bottom. Press the adhesive strip firmly against the frame rim, ensuring the flexible silicone blade rests lightly against the glass or mating panel without binding the door’s slide.
For additional non-invasive, renter-friendly ideas, review this tutorial on 7 Steps: Removable Door Seal for Patio Doors (No Screw Guide) and our deep dive on how to install door weather stripping.
Sealing the Interlock and Bottom Track
The interlock strip—where the back vertical edge of the sliding panel overlaps with the front vertical edge of the fixed glass panel—is responsible for the majority of air drafts.
- Installing Draft Stoppers: Attach a self-adhesive, flexible rubber draft stopper vertical flange along the meeting stile of the door. As the door closes, this flange forms a tight windbreak over the interlock gap.
- Bottom Track Seals: Check the small end plugs located at the bottom corners of the frame track. If these foam or rubber dam blocks are missing or compressed, replace them to block bottom-corner wind infiltration.
- Clearing Weep Holes: Ensure that exterior weep holes along the bottom track remain completely free of dirt, leaves, or excess caulk. Weep holes drain rainwater outside; if blocked, water can back up into your interior track and destroy bottom weather seals. For related threshold sealing tips, explore our step-by-step guide on exterior metal door bottom seal replacement.
Common Mistakes to Avoid and Long-Term Maintenance
Avoid these common mistakes when installing sliding glass door weather stripping:
- Stretching the Material During Installation: Pulling or stretching brush pile while pressing it into kerf slots creates internal tension. Once temperatures drop, the stretched strip will shrink back, leaving wide gaps at both ends.
- Using Petroleum-Based Lubricants: Never spray WD-40, liquid grease, or silicone oils inside sliding door tracks. Wet lubricants attract dirt and outdoor grit, creating a grinding compound that shreds pile fibers and ruins bottom rollers. Use only dry Teflon spray or silicone dry film on tracks and roller axles.
- Ignoring Rollers and Track Alignment: Installing fresh weather stripping on a door with shot rollers or a misaligned frame will destroy your new seals in a matter of weeks.
- Trimming Materials Too Short: Always leave a small amount of extra length on brush pile strips to prevent corner air leaks.
To preserve your seals and extend their lifespan to 7–10 years:
- Vacuum door tracks every spring and autumn to remove dirt accumulation.
- Inspect pile fibers annually for flattening or signs of mold.
- Wipe vinyl and rubber seals with mild soapy water every few months to remove surface oxidation.
- Read our complete maintenance overview on how to replace door weather stripping.
Troubleshooting Drafts, Sticking Doors, and Track Issues
If you’ve installed new weather stripping but cold air continues to enter or your door becomes difficult to open, check these potential mechanical issues:
- Adjust Roller Height and Squareness: Turn the adjustment screws at the bottom corners of the panel to raise or lower each side independently. Use a level along the side stile to confirm the panel sits completely plumb against the side jamb seal.
- Straighten Bent Tracks: If your bottom aluminum track has minor dents or bends, tap them straight using a wood block and rubber mallet so the door glides smoothly without snagging the new seals.
- Increase Latch Compression: Many patio door handles feature adjustable locking cams inside the door edge. Turn these cams using a screwdriver to pull the door tighter against the frame weather stripping when latched.
- Evaluate Thermal Insulation: If air isn’t blowing past the seals but the space around the door still feels cold, your glass unit may be losing its thermal seal. Learn how to diagnose window pane issues in diy sliding door roller replacement made simple and the ultimate guide to double pane sliding glass door replacement.
Frequently Asked Questions About Sliding Door Weather Stripping
How long does sliding glass door weather stripping last?
Under typical climate conditions in Chicago and surrounding communities like Schaumburg, Glenview, and Elmhurst, high-quality fin seal weather stripping lasts between 5 and 10 years. Doors subjected to intense afternoon sun exposure or frequent daily traffic may show wear closer to the 3- to 5-year mark.
Can weather stripping be replaced without removing the sliding door?
Yes! You can apply peel-and-stick silicone seals, surface-mounted draft stoppers, or clear V-seal strips directly to the interior or exterior edges of your door frame without removing the glass panel. While internal kerf-mounted seals offer maximum long-term protection, surface-applied options provide excellent wind protection for renters or quick seasonal updates.
What should I do if new weather stripping doesn’t stop the draft?
First, check whether the draft is coming past the weather strip or through the gap between the door frame and your home’s wall drywall. If cold air is leaking from behind the interior trim, you need to caulk behind the casing. If air leaks through the meeting stiles, adjust your door’s roller alignment and latch tension to ensure complete seal compression when locked.
Conclusion
Taking the time to install weather stripping on a sliding glass door restores indoor comfort, eliminates unpleasant cold spots, and boosts your home’s overall thermal efficiency during harsh winters and hot summers. Whether you choose a simple peel-and-stick update or perform a complete kerf seal restoration, sealing air leaks around your patio door delivers immediate energy savings and draft relief.
