Start With the Right Fit for Your Custom Patio Screen Door Replacement
A successful custom patio screen door replacement starts with three checks: measure the existing opening and tracks, choose a door style that matches the opening, and select a durable frame and mesh for your home.
- Choose an adjustable-fit screen only if your opening falls within its stated range.
- Order a fully custom screen for off-size, older, or oversized patio door openings.
- Pick extruded aluminum framing and the right mesh – standard fiberglass for everyday insect control, pet-resistant mesh for claws, or solar mesh for strong afternoon sun.
- Inspect the top channel, bottom track, rollers, and latch position before ordering.
The right replacement should slide smoothly, seal out insects, and stand up to daily use, Chicago weather, and pets. A precise measurement matters because many custom frames are made to the nearest 1/16 inch and cannot be trimmed after delivery.
I am Voytek Glab, owner of Perfect Windows & Siding, with more than 20 years of hands-on exterior remodeling experience across Chicagoland. I help homeowners make informed custom patio screen door replacement decisions with the same attention to fit, durability, and long-term performance used for windows, siding, and entry doors.
Custom patio screen door replacement terms explained:
Types of Custom Sliding Screen Doors: Pre-Assembled vs. DIY Kits
When planning your screen upgrade, you will generally choose between factory pre-assembled screen doors and knocked-down DIY assembly kits. Both styles deliver excellent functionality when built from heavy-duty extruded aluminum, but they cater to different project timelines and handling needs.
Extruded aluminum frames (often featuring a .050-gauge wall thickness) provide vastly superior rigidity compared to lightweight roll-formed aluminum or roll-formed steel. In the Chicagoland climate—where humid summers alternate with freezing winters—roll-formed steel tends to rust and roll-formed aluminum easily twists or racks out of square. Heavy-duty extruded profiles paired with precision mitered corners keep the door straight and true for decades.
For homeowners exploring a comprehensive upgrade, consulting our patio door replacement guide 2026 helps frame how sliding screens integrate with full door systems. If you prefer building your unit on-site, a Custom Heavy Duty Sliding Patio Screen Door Kit provides pre-cut frame extrusions ready for corner insertion and screening.
| Feature | Pre-Assembled Custom Screen Doors | DIY Custom Screen Door Kits |
|---|---|---|
| Assembly Required | None; arrives ready to mount | Frame assembly and screen spline rolling required |
| Installation Time | Under 15 minutes | 30 to 45 minutes |
| Corner Construction | Factory-welded or internal die-cast mitered corners | Heavy-duty internal corner brackets or keys |
| Roller System | Factory-aligned steel ball-bearing or composite rollers | User-installed steel ball-bearing or composite rollers |
| Sizing Flexibility | Precision-built to exact height and width | Factory cut-to-size or field-trimmed knock-down kits |
| Structural Rigidity | Maximum out-of-the-box squareness | High rigidity when corners and mesh are properly tensioned |
| Handling & Delivery | Ships in full-size protective crating | Ships in compact, flat-pack parcel packaging |
Adjustable-Fit vs. Fully Custom Screen Doors
Understanding the difference between adjustable-fit and fully custom units is essential for getting a tight, rattle-free seal:
- Adjustable-Fit Screen Doors: These models utilize a 3-inch expander system built into the top and bottom rails, accommodating track heights from 78 to 81 inches. While convenient for standard openings—fitting over 95% of standard residential roller tracks—their widths are fixed (commonly 30, 36, or 48 inches).
- Fully Custom Screen Doors: Engineered down to the exact 1/16-inch increment for both height and width. These are necessary for older homes in areas like Park Ridge, Evanston, or Wilmette, where settling, non-standard framing, or vintage architectural dimensions prevent standard screens from latching properly.
If your entryway features unique architectural dimensions, pairing precision screens with custom exterior doors guarantees a unified aesthetic and tight perimeter seal.
Selecting Frame Materials and Mesh Upgrades for Your Custom Screen Door
The long-term performance of your replacement screen door hinges on the quality of its framing, hardware, and screen cloth. Standard builder-grade doors often fail because thin vinyl or roll-formed frames warp under sun exposure, while plastic rollers crack after a single winter.
When selecting your door package, prioritize these construction features:
- Extruded Aluminum Framing: Look for frame profiles measuring 1 5/8″ x 1/2″ or heavy-duty 2″ x 1″ profiles. Powder-coated finishes in White, Desert Sand, Bronze, Champagne, Mill/Silver, or Black resist chalking and chipping.
- Roller Mechanics: Steel ball-bearing rollers and heavy-duty composite wheels offer superior weather resistance and effortless gliding compared to standard nylon rollers.
- Weatherstripping and Bug Seals: A high-density woolpile or a flexible 1 1/2-inch PVC bug flap seals the vertical gap between the screen frame and your glass door, blocking spiders and mosquitos from entering.
For a comprehensive breakdown of hardware and material configurations, refer to our Patio Door Screens Guide.
Standard Fiberglass vs. Heavy-Duty Pet and Solar Screen Mesh
Not all screen mesh serves the same purpose. Tailoring your mesh selection to your lifestyle ensures optimal airflow, visibility, and strength:
- Standard Charcoal Fiberglass (18×16 weave): The reliable standard for unobstructed views and dependable insect protection. It allows maximum fresh air while maintaining a clean exterior look.
- Pet-Resistant Mesh (PetScreen / Textilene): Engineered from heavy-duty vinyl-coated polyester, PetScreen is approximately 7 times stronger than standard fiberglass mesh. It resists tearing, clawing, and pushing from active dogs and cats.
- Solar Screen Mesh (SunTex 80% to 90%): Designed to absorb and dissipate up to 90% of solar heat and UV radiation before it hits your glass. Homeowners find solar screens dramatically reduce interior floor temperatures under direct afternoon sunlight while providing daytime privacy.
- High-Clarity Mesh (BetterVue / UltraVue): Woven with finer yarns in an optimized mesh count, providing premium optical clarity, enhanced airflow, and improved insect protection without appearing noticeable from inside.
- Micro-Insect Mesh (No-See-Um 20×20 weave): A tight weave specifically engineered to keep out tiny gnats, biting midges, and ticks near wooded or lakefront properties.
How to Measure Your Sliding Door Opening for a Perfect Fit
Precision is the foundation of any custom installation. Because factory-punched roller adjustment holes and extruded frames cannot simply be cut down on-site after ordering, taking three-point measurements ensures your custom door drops right into place.
When measuring your opening, follow these best practices:
- Width Measurement: Measure horizontally from the inside face of the side jamb channel to the outer edge of the center post or glass door frame where the screen latches. Take this measurement at the top, middle, and bottom of the frame, recording the smallest dimension to the nearest 1/16 inch.
- Height Measurement: Measure vertically from the top of the bottom roller rail (the raised metal ridge the wheel sits on) up inside the top header channel. Take this reading on the left, center, and right sides of the opening. Record the shortest measurement.
- Measuring an Existing Door: If your old screen door fit well before the mesh wore out, simply measure the door frame’s overall height and width directly from outer edge to outer edge.
For additional structural tips on ensuring your patio opening is plumb and square, check our guide on fitting sliding patio doors like a pro.

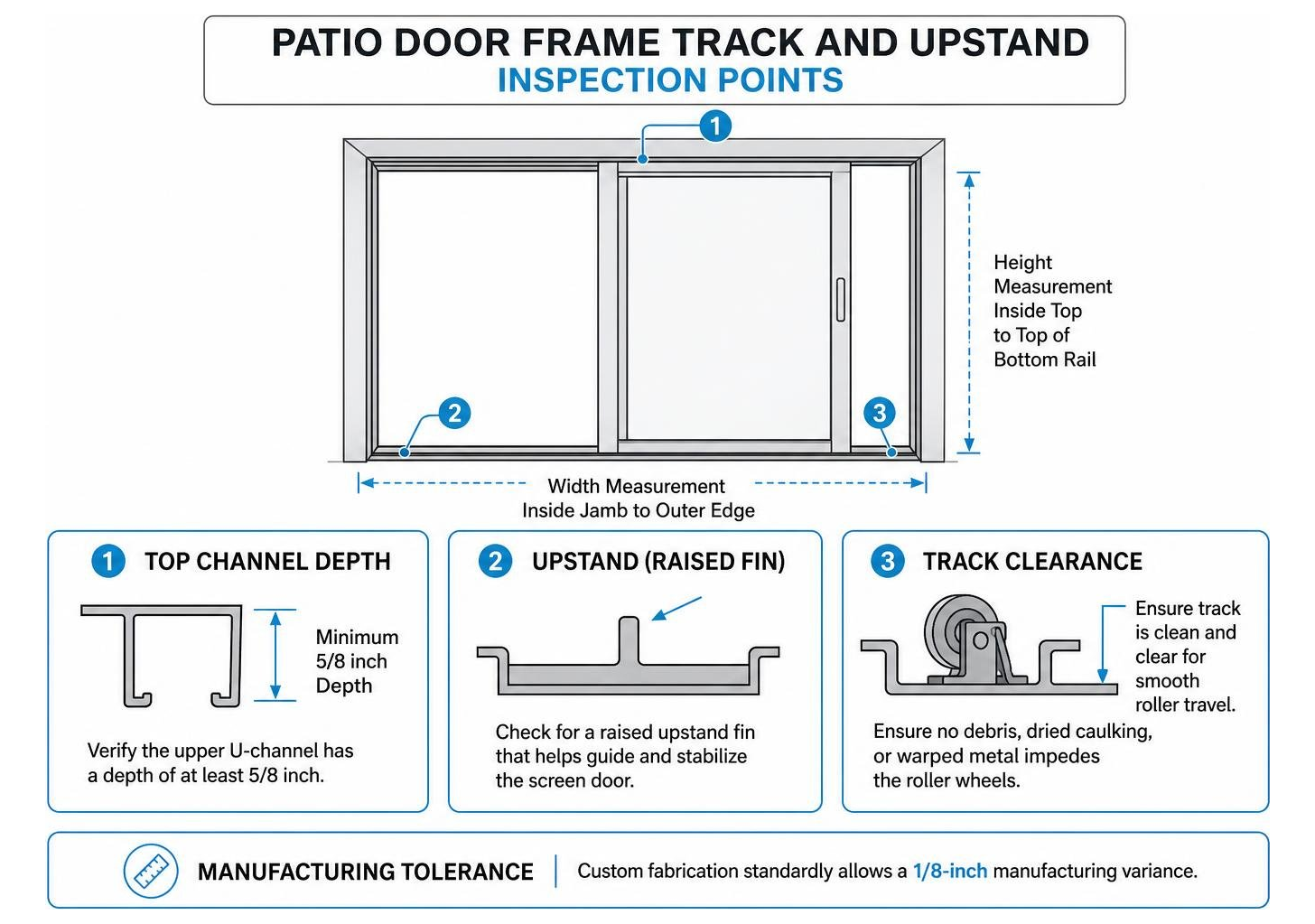

Measuring for Track Depth, Upstands, and Clearances
Beyond height and width, inspect the profile of your sliding door tracks:
- Top Channel Depth: Verify that the upper U-channel has a depth of at least 5/8 inch to allow enough vertical clearance for the door to lift in and seat securely over the bottom rail.
- Upstands and Track Clearance: Check whether your frame utilizes a raised upstand fin or an open channel. Ensure there is no debris, dried caulking, or warped metal along the bottom guide that could impede the roller wheels.
- Manufacturing Tolerance: Custom fabrication standardly allows a 1/8-inch manufacturing variance to accommodate minor seasonal expansion in your home’s structural framing.
Step-by-Step Custom Patio Screen Door Replacement and Installation
Installing a custom screen door is a straightforward process whether you are hanging an assembled door or assembling a pre-cut knock-down kit.
Before starting, gather these essential tools:
- Phillips-head screwdriver
- Slotted screwdriver or putty knife (to guide bottom rollers)
- Spline roller tool (with convex and concave wheels)
- Utility knife with fresh blades
- Tape measure and level
- Safety glasses and rubber mallet
If your glass door requires mechanical track servicing prior to hanging the screen, our walkthrough on DIY sliding door roller replacement made simple outlines roller maintenance and rail cleaning techniques.

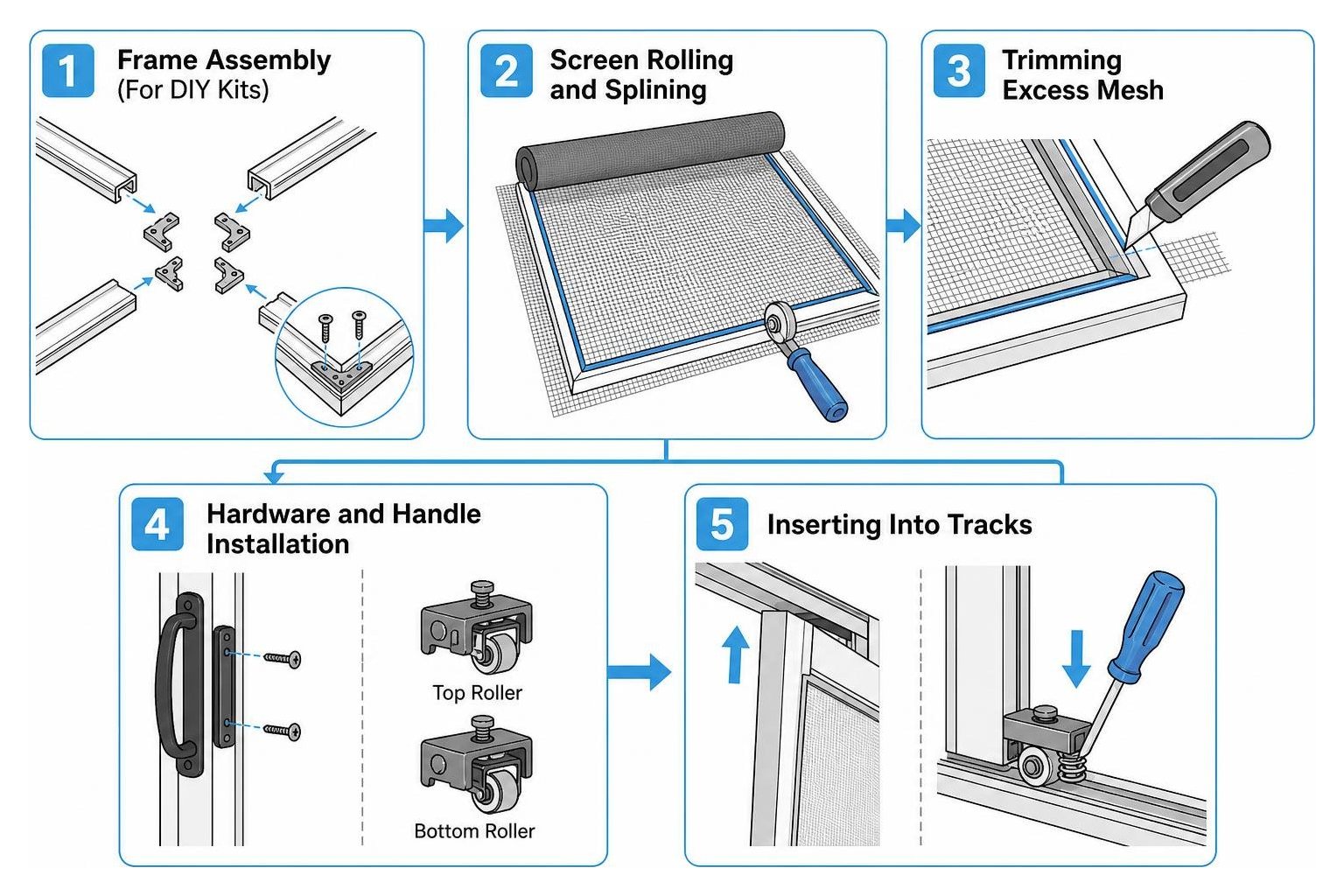

Step-by-Step Custom Patio Screen Door Replacement Process
Follow this sequential process to assemble and mount your custom patio screen:
- Frame Assembly (For DIY Kits): Lay out the four pre-cut extruded aluminum frame sections on a clean, flat surface. Insert the heavy-duty internal corner brackets into each corner and tap gently with a rubber mallet until seams meet at clean 90-degree miter joints. Secure with corner screws.
- Screen Rolling and Splining: Roll out your selected mesh over the assembled frame, ensuring a 1-to-2-inch overhang on all sides. Secure the mesh into the frame channel using .185 foam spline and a spline roller tool, keeping even tension across the door face to avoid frame bowing (hourglassing).
- Trimming Excess Mesh: Using a sharp utility knife held at a 45-degree angle against the outer spline groove wall, cleanly trim the excess screen cloth without nicking the spline or frame finish.
- Hardware and Handle Installation: Fasten the locking pull handle and latch assembly at your preferred height using the factory-drilled mounting holes. Install the top and bottom roller assemblies into the frame corners.
- Inserting Into Tracks: Lift the top edge of the screen door into the upper track channel as high as it will go. Align the bottom rollers over the bottom raised rail and gently depress the spring-loaded wheels using a flat screwdriver until they snap securely onto the track.
- Tension and Plumb Adjustment: Turn the adjustment screws located above the bottom wheels to raise or lower each side. Adjust until the screen door hangs completely plumb, latches smoothly, and glides with light fingertip pressure.
Custom Patio Screen Door Replacement Considerations
When replacing your screen door, consider whether matching exterior upgrades are needed. If your existing sliding glass door exhibits draftiness, damaged seals, or fogged panes, reviewing your overall exterior door replacement options can provide a cohesive, weather-tight solution for your entire entryway.
Custom screen configurations can be adapted to match:
- Extra-wide sliding spans across multi-panel sliding glass door systems.
- Integrated stationary screen panels designed to cover fixed exterior glass sections.
- Coordinated architectural finishes that seamlessly match existing trim colors in Des Plaines, Morton Grove, or Schaumburg homes.
Frequently Asked Questions About Custom Screen Doors
Can I replace a screen door on an oversized or non-standard opening?
Yes. Custom-manufactured screen doors can be fabricated for large openings up to 96 inches in height and 65 inches in width. These units utilize reinforced 2″ x 1″ heavy-gauge extruded framing and internal spreader bars to prevent frame flex across expansive openings.
What is the best screen mesh for households with pets?
Pet-resistant screen mesh (such as PetScreen) is the top choice for homes with dogs or cats. Manufactured from vinyl-coated polyester, it provides approximately seven times the strength of standard fiberglass mesh, resisting punctures, tears, and claw scratches while maintaining clear outward visibility.
How long does custom screen door assembly and installation take?
A pre-assembled custom sliding screen door can be mounted and adjusted in under 15 minutes. A knocked-down DIY custom screen kit typically takes approximately 30 minutes to assemble, spline, and hang using basic household tools.
Conclusion
A high-performance custom patio screen door brings refreshing cross-breezes into your home while keeping pests out and standing strong against active pets and Midwest weather. Choosing heavy-duty extruded aluminum frames, steel ball-bearing rollers, and durable specialty mesh ensures your patio entryway remains smooth and functional year after year.
At Perfect Windows & Siding, our team brings over 20 years of licensed, insured craftsmanship to homes across Chicago, Des Plaines, Glenview, Park Ridge, and surrounding suburbs. We take pride in delivering custom solutions engineered for long-term durability, backed by our dedicated customer service and lifetime warranty protection.
