Everything You Must Know About 72×80 Impact Sliding Door Upgrades
Why a 72×80 Impact Sliding Door Is a Smart Patio Upgrade
A 72×80 impact sliding door is a standard 6-foot-wide patio door made to resist windborne debris, heavy rain, and forced entry better than a typical sliding door. For homeowners evaluating storm-rated doors, focus on four things first:
- Code approval for your location, especially Miami-Dade NOA or Florida Product Approval for high-wind areas.
- Laminated impact glass, ideally with Low-E coating and argon gas for better comfort in summer and winter.
- A strong frame and secure lock, such as reinforced aluminum or quality vinyl with multi-point locking.
- Professional installation, including a level sill, proper flashing, drainage, and sealed perimeter.
This size fits many existing patio openings while saving the floor space that hinged French doors need to swing open. It can also bring in wide outdoor views, controlled ventilation, and stronger everyday security. Some impact-rated aluminum models are tested for demanding design pressures, while certain hurricane-focused systems meet South Florida missile-impact requirements and building codes.
For Chicago homes, the right door is not only about storm protection. Low-E glass, insulated glazing, quality weatherstripping, and a well-fitted frame can help limit drafts, reduce solar heat gain, and make the room beside the patio more comfortable year-round.
I am Voytek Glab, owner of Perfect Windows & Siding, and I have spent more than 20 years helping Chicagoland homeowners select and install reliable exterior doors, windows, and siding. In the sections ahead, I will break down how to compare a 72×80 impact sliding door by frame material, glass package, handing, performance rating, and installation needs.
Easy 72×80 impact sliding door glossary:
Why Upgrade to a 72×80 Impact Sliding Door?
Standard sliding doors work well for basic transitions to the backyard, but modern impact-rated units provide a noticeable step up in structural resilience. Upgrading your home’s exterior with heavy-duty sliding glass doors creates an impenetrable barrier against severe weather, unwanted intruders, and outside noise.
An impact unit uses heavy-duty laminated glass composed of two panes bonded together with a transparent, highly durable interlayer (such as polyvinyl butyral or SentryGlas). If flying debris strikes the outer glass, the pane may crack in a spiderweb pattern, but the interlayer holds the glass shards securely in place. This prevents wind, rain, and debris from penetrating the home and compromising the building envelope.
Beyond extreme storm protection, a 72×80 impact door provides several daily living advantages:
- Enhanced Security and Forced Entry Resistance: Impact glass resists repeated strikes from heavy tools, discouraging potential intruders far better than standard tempered glass.
- Superior Sound Insulation: The thick laminated glass sandwich disrupts sound wave frequencies, significantly dampening street traffic, lawnmowers, and neighborhood noise.
- UV Ray Protection: The specialized interlayer blocks up to 99% of damaging ultraviolet radiation, preserving hardwood floors, rugs, and furniture from fading over time.
- Year-Round Interior Comfort: When paired with insulated glazing, these doors create an airtight seal that eliminates cold drafts during blustery Midwest winters and blocks radiant heat during humid summers.
Aluminum vs. Vinyl: Comparing Frame Materials
Choosing the right structural frame material is one of the most critical decisions when evaluating a patio door upgrade. Both heavy-duty aluminum and multi-chambered vinyl offer distinct engineering advantages.
| Feature / Metric | Heavy-Duty Aluminum Frames | Multi-Chambered Vinyl Frames |
|---|---|---|
| Structural Tensile Strength | Exceptionally high; supports narrow profiles | High; reinforced with internal metal channels |
| Thermal Performance | Requires thermal breaks to prevent transfer | Naturally non-conductive and insulating |
| Maintenance Needs | Low; periodic washing and track lubrication | Extremely low; never requires painting or sealing |
| Corrosion Resistance | Excellent with marine-grade powder coatings | Impervious to moisture, rot, and salt spray |
| Aesthetic Finishes | Sleek bronze, black, anodized, or white | Contemporary dual-color options (e.g., black exterior/white interior) |

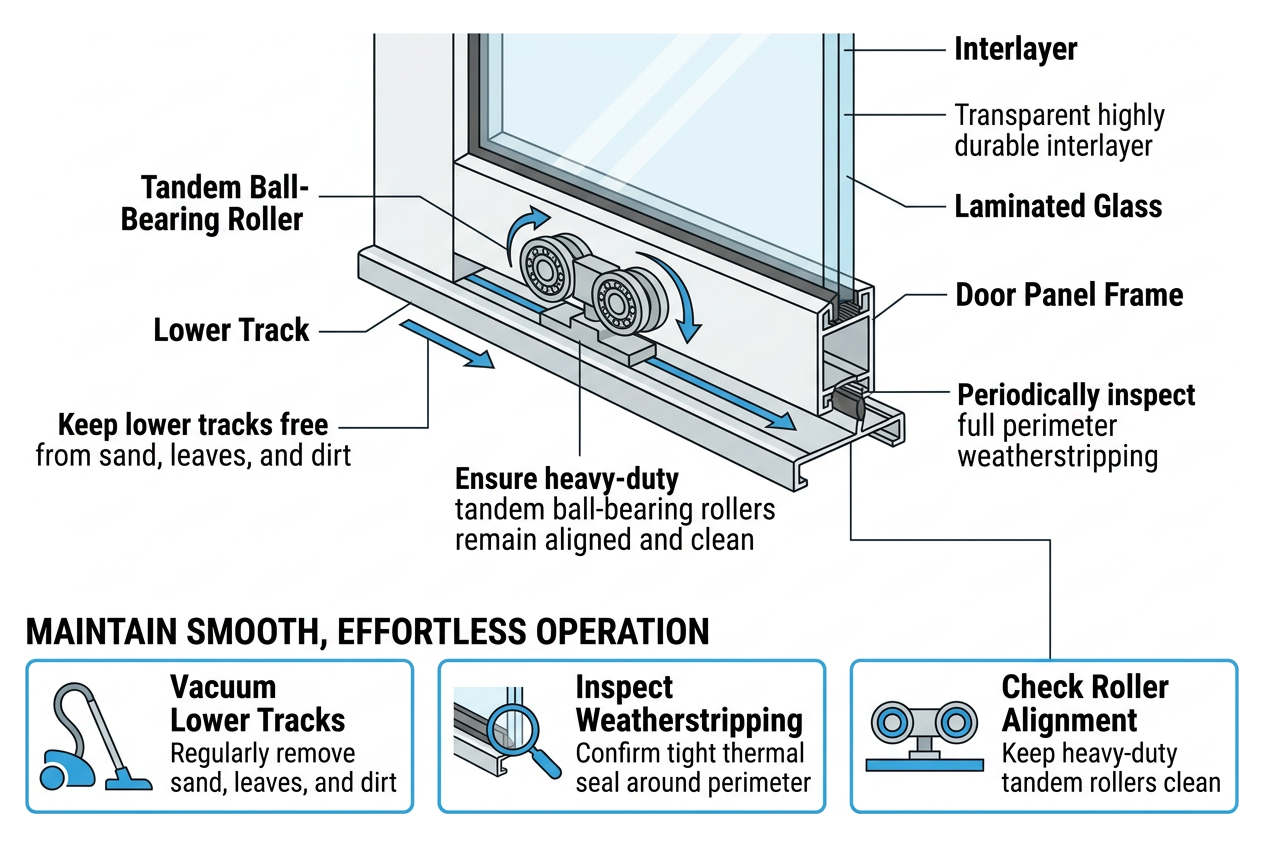

Durability and Maintenance of a 72×80 Impact Sliding Door
The long-term performance of your patio door relies heavily on routine hardware care and frame construction. Aluminum systems, such as the CGI 4130A series, feature structural frame depths ranging from 5 to 7 inches, providing immense rigidity against structural wind loads. For areas prone to high moisture, choosing optional stainless steel assembly screws ensures lasting corrosion resistance.
High-performance vinyl systems, such as the American Craftsman 70 Series, utilize welded multi-chamber profiles that resist warping, peeling, and chipping.
To maintain smooth, effortless operation across both materials:
- Keep lower tracks free from sand, leaves, and dirt with a regular vacuum attachment.
- Periodically inspect full perimeter weatherstripping to confirm a tight thermal seal.
- Ensure heavy-duty tandem ball-bearing rollers remain aligned and clean.
Thermal Performance and Energy Efficiency Upgrades
Glazing technology plays a major role in keeping interior spaces comfortable regardless of outside weather conditions. When investing in a patio door, pairing impact glass with advanced thermal packages yields significant comfort benefits. Homeowners exploring a double pane sliding glass door replacement should look for:
- Low-E (Low-Emissivity) Glass: Specialized microscopically thin metallic coatings reflect infrared heat back to its source, keeping your home warm in winter and cool in summer.
- Argon Gas Infill: Dense, non-toxic argon gas sealed between insulated glass panes slows thermal convection significantly compared to air-filled units.
- Optimized Solar Heat Gain Coefficient (SHGC): Formulations like ProSolar Shade LowE help control heat buildup from direct sunlight without dimming natural daylight.
Systems like the SIMONTON Premium WX series unite these energy-saving features into an impact-rated package that lowers energy consumption and reduces condensation along the glass edge.
Critical Features, Handing, and HVHZ Performance Standards
Standard Configurations for a 72×80 Impact Sliding Door
A 72×80 sliding door consists of two 36-inch nominal panels across an 80-inch height. When ordering or customizing your setup, you can review custom patio door replacement options to match your exact floor plan:
- XO Configuration: The left panel operates (slides open) while the right panel remains stationary (viewed from outside).
- OX Configuration: The left panel is stationary while the right panel slides open.
- Universal Handing: Certain vinyl doors offer field-reversible panels, allowing installers to set the sliding orientation directly on-site.
Both panels feature heavy-duty interlocking stiles that latch together tightly when closed, forming a continuous structural lock against wind-driven rain and forced entry.
High-Velocity Hurricane Zones and Code Compliance
Impact-resistant doors are rigorously evaluated using standardized laboratory testing to verify their structural integrity under extreme conditions:
- Design Pressure (DP) Ratings: Indicates the door’s capacity to resist positive (inward) and negative (outward suction) wind forces. For example, systems engineered to +55/-65 PSF withstand severe hurricane-force pressures without structural failure.
- Missile Impact Testing: Doors undergo large missile impact tests, where a 9-pound 2×4 lumber stud is fired at the glass at 50 feet per second, followed by thousands of positive and negative wind pressure cycles.
- Miami-Dade NOA & Florida Building Code (FBC): Products like the CWS Hurricane Guard 7900 Series achieve Miami-Dade County Notice of Acceptance (NOA) and FBC approvals, certifying compliance for multi-story residential applications.
- AAMA 1302.5-76 Certification: Confirms that the locking assemblies, frame corners, and keeper hardware pass strict forced-entry prevention standards.
Installation and Door Comparisons
Professional Installation vs. DIY Considerations
Installing a heavy-duty impact sliding door requires exact precision. Because impact glass assemblies weigh considerably more than standard single- or double-pane units, proper structural support is non-negotiable.
Before starting, review our guide on sliding glass door installation along with our step-by-step overview of fitting sliding patio doors.
Key installation steps include:
- Rough Opening Preparation: Checking the subfloor for absolute level and ensuring the header supports structural loads without sagging.
- Flashing and Sill Pan Installation: Installing water barrier membranes and sill pans with slanted drainage adapters to direct moisture outdoors.
- Square, Plum, and Shim: Securing the heavy frame with heavy-duty structural fasteners into solid wall framing studs.
- Perimeter Sealing: Applying high-grade polyurethane sealants and backer rods around the exterior perimeter to stop air and water leaks.
Given the weight of the panels and the tight tolerances required for smooth gliding and code compliance, hiring licensed and insured professionals ensures the door performs as engineered.
Impact Sliding Doors vs. French and Hinged Patio Doors
When comparing sliding systems to hinged French doors, review our patio door replacement guide to weigh functional design differences:
- Usable Floor Space: Sliding doors glide smoothly along parallel tracks, leaving all nearby interior and exterior floor space completely unobstructed. Hinged doors require up to 6 feet of clear swing radius.
- Expansive Glass View: A 2-panel 72×80 slider offers wider individual panes of unobstructed glass compared to traditional multi-panel French doors.
- Ventilation Control: Sliders allow you to crack the active panel open by any increment, protected by an exterior insect screen.
- Multi-Point Security: Modern impact sliders utilize robust keyed locks and multi-point mortise latches that anchor the panel firmly into the jamb.
You can browse a wide selection of styles at Lowe’s 72-in x 80-in Patio Doors or explore configurations like Right-Hand Slide Patio Doors to compare different design aesthetics.
Frequently Asked Questions
What factors determine the overall performance of a 72×80 impact sliding patio door?
The overall performance of an impact patio door depends on selected frame materials (aluminum vs. vinyl), specialized glass upgrades (such as Low-E coatings and argon gas fills), structural wind load ratings, and professional installation requirements. Selecting heavy-duty impact-rated systems delivers unmatched long-term value through energy efficiency, storm protection, and reliable home security.
What is the difference between left-hand and right-hand slide directions?
Slide handing is determined by looking at the door from the outside of the home. In a left-hand (XO) setup, the left panel slides open toward the right stationary panel. In a right-hand (OX) setup, the right panel slides open toward the left stationary panel. Universal handing models offer flexible hardware that can be reversed during installation to match your interior furniture layout.
Are 72×80 impact patio doors suitable for cold-weather climates?
Yes. While impact doors are famous for hurricane defense, their heavy laminated glass construction, multi-chambered insulated vinyl or thermally broken aluminum frames, and airtight perimeter seals make them exceptional performers in cold-weather regions. They prevent winter drafts, stop wind infiltration during blizzards, and help maintain steady indoor temperatures all year long.
Conclusion
Upgrading to a 72×80 impact sliding door provides lasting security, elevated energy performance, and effortless indoor-outdoor living. At Perfect Windows & Siding, our local, family-owned business brings over 20 years of craftsmanship to homeowners throughout Chicago, Des Plaines, Park Ridge, Morton Grove, and surrounding communities. Our licensed and insured installation specialists deliver custom solutions backed by our comprehensive lifetime warranty.
Contact our team today to Schedule your consultation and get a free estimate on your patio door upgrade.
